Chafe Chain 76mm
Chafe chain is a chain at the end of a towing line or Single Point Mooring hawser, normally guided through a chock at the edge of the tanker deck. Chafe Chain is usually for mooring/emergency towing system.
Qingdao Lige Machinery can supply a full range of OCIMF compliant chafe chains, as well as customer bespoke assemblies configured to individual operator specifications.
• Chafe chain A & B in accordance with latest OCIMF 2018 Guidelines, 1st edition
• Chafe chain A & B in accordance with OCIMF 2007 Guidelines, 4th edition
• Chafe chain A, B & C in accordance with OCIMF 1993 Guidelines, 3rd edition
• Weak links, Kenter shackles, Joining shackles, Delta plates, Pear link Shackle, Panama Chock, Smit Bracket, etc.

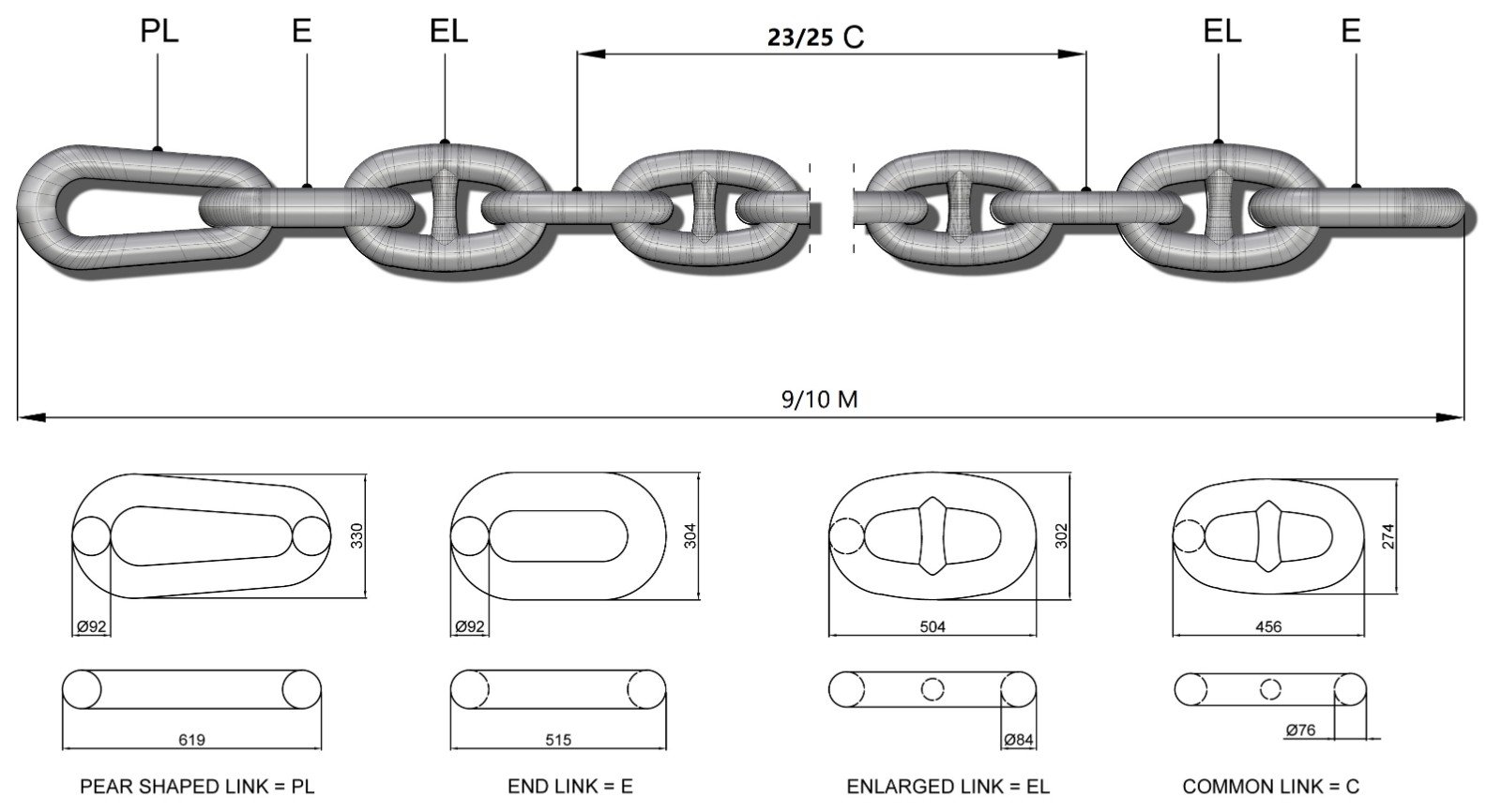

Typical Chain A / B configuration per OCIMF 2018. Chain is manufactured, tested and inspected in accordance with IACS W22.
Specifications:
Nominal Diameter: 76 mm
Grade: 3
Execution: bituminous paint
Total length: about 9-10 meters
Composition: Pear shaped link + End link + Enlarged link + 23/25 Common Links + Enlarged Link + End Link
Proof load: 3010 Kn
Breaking load: 4300 Kn
SWL (according to IMO): 2150 Kn
