US Type Turnbuckle Jaw&Jaw
U.S Type Drop Forged Turnbuckle meets the U.S. standard.
It is made of stainless steel AISI 304/316.
Turnbuckles are one of the most popular wire rope fittings, ideal for horticulture, garden projects, landscaping, or construction rigging and fencing,etc.

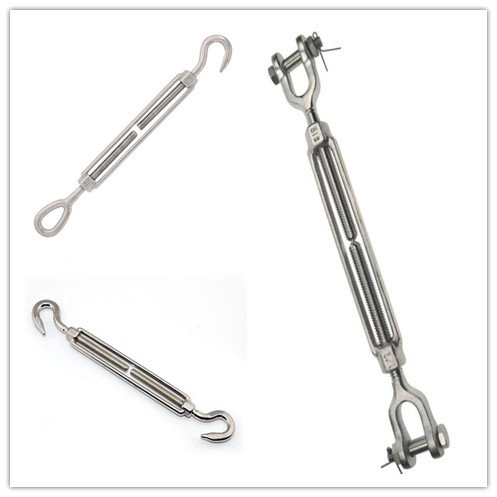

It ends can be hook&hook type, hook&eye type, eye&eye type, jaw&eye type, jaw&jaw type.
And special specification and marks can be make according to customer's requirement.
| SIZE | WLL | A | B | J | K | G | M | N | E | BB |
| lbs | open | closed | open | closed | closed | |||||
| 1/4x4 | 500 | 0.25 | 0.41 | 10.90 | 6.90 | 0.62 | 11.90 | 7.90 | 1.58 | 4.00 |
| 5/16x4 1/2 | 800 | 0.31 | 0.47 | 12.36 | 8.36 | 0.87 | 13.90 | 9.40 | 1.98 | 4.50 |
| 3/8x6 | 1200 | 0.38 | 0.50 | 16.14 | 10.14 | 0.87 | 17.38 | 11.38 | 2.12 | 6.00 |
| 1/2x6 | 2200 | 0.50 | 0.63 | 17.50 | 11.50 | 1.06 | 19.00 | 13.00 | 2.75 | 6.00 |
| 1/2x9 | 2200 | 0.50 | 0.63 | 23,50 | 14.50 | 1.06 | 25.00 | 16.00 | 2.75 | 9.00 |
| 1/2x12 | 2200 | 0.50 | 0.63 | 29.50 | 17.50 | 1.06 | 31.00 | 19.00 | 2.75 | 12.00 |
| 5/8x6 | 3500 | 0.63 | 0.75 | 18.80 | 12.80 | 1.31 | 20.88 | 14.88 | 3.50 | 6.00 |
| 5/8x9 | 3500 | 0.63 | 0.75 | 24.80 | 15.80 | 1.31 | 26.88 | 17.88 | 3.50 | 9.00 |
| 5/8x12 | 3500 | 0.63 | 0.75 | 30.80 | 18.80 | 1.31 | 32.88 | 20.88 | 3.50 | 12.00 |
| 3/4x6 | 5200 | 0.75 | 0.94 | 20.00 | 14.00 | 1.50 | 22.60 | 16.60 | 4.18 | 6.00 |
| 3/4x9 | 5200 | 0.75 | 0.94 | 26.00 | 17.00 | 1.50 | 28.60 | 19.60 | 4.18 | 9.00 |
| 3/4x12 | 5200 | 0.75 | 0.94 | 32.00 | 20.00 | 1.50 | 34.60 | 22.60 | 4.18 | 12.00 |
| 3/4x18 | 5200 | 0.75 | 0.94 | 44.00 | 26.00 | 1.50 | 46.60 | 28.60 | 4.18 | 18.00 |
| 7/8x12 | 7200 | 0.88 | 1.13 | 33.36 | 21.36 | 1.75 | 36.32 | 24.32 | 4.85 | 12.00 |
| 7/8x18 | 7200 | 0.88 | 1.13 | 43.36 | 27.36 | 1.75 | 48.32 | 30.32 | 4.85 | 18.00 |
| 1x6 | 10000 | 1.00 | 1.19 | 22.72 | 16.72 | 2.06 | 26.06 | 20.06 | 5.53 | 6.00 |
| 1x12 | 10000 | 1.00 | 1.19 | 34.72 | 22.72 | 2.06 | 38.06 | 26.06 | 5.53 | 12.00 |
